SMC/BMC/GMT/FRP/GRP Hydraulic Press Machine (TT-LM4000T) Features: A. This press machine has Frame structure and outstan
Basic Info.
Model NO. TT-LM4000T
Type SMC Press Machine
Transport Package Bubble Bag
Specification TT-LM4000T
Trademark TAITIAN
Origin China
HS Code 84629201
Production Capacity 300-500 PCS/Year
Product Description

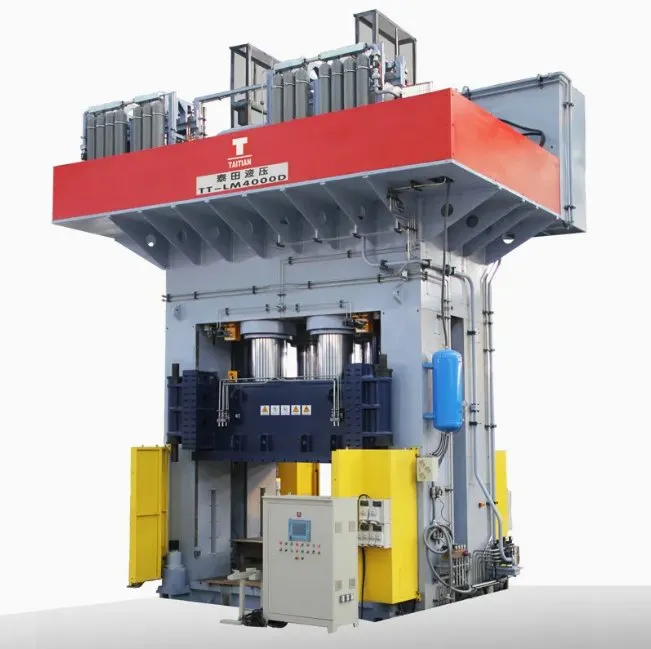

SMC/BMC/GMT/FRP/GRP Hydraulic Press Machine (TT-LM4000T)

CE/Nr Standard Hydraulic Press Machine (TT-LM4000T)

Features:
A. This press machine has Frame structure and outstanding rigidity. Its main function is to press SMC sheets (commonly referred to glass fibre reinforced plastic) in the metal mould. This serie of machines has reached international advanced standard.

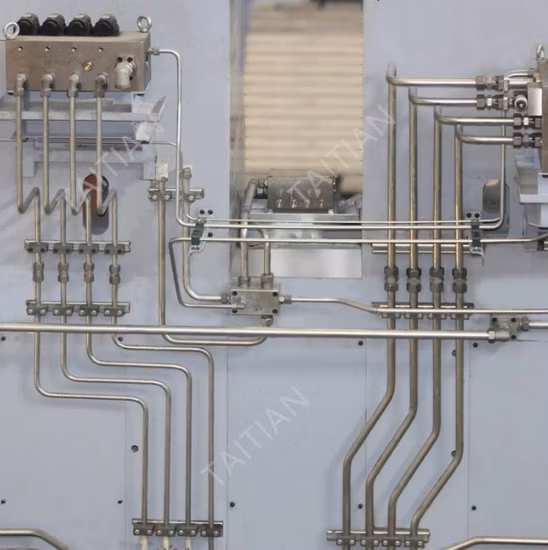

B. Adopt cartridge valve integrated system characterised by little impact, reliable action and long service life as well as little leakage; Enjoy automatic lubrication system of guide rail. (Such technology is introduced from Taiwan. )
C. Mechanical-electrical-hydraulic integration safety device. For example: Lower chamber support for the oil cylinder, with the interlock circuit of upper and lower chambers, all offering perfect safety. (We introduced advanced Taiwan hydraulic technology. )
D. Two technics, namely, pressure setting and stroke(travel) setting are available. It is functioned by pressure maintaining and adjustable time delay.
E. Working pressure and stroke can be easily adjusted within a certain range according to technical needs.
F. Adopt PLC computer touch screen integrated control. There are 3 operation manners, adjust, manual and semi-automatic.
Aapplications:
Applied in technics, like metal stretching, punching and cutting, bending, flanging and moulding of SMC sheet.
Particularly applied in the following:
A. Compression moulding of SMC sheet (glass fibre reinforced plastic)
B. Auto industry: Steel ring, vehicle body, chasis, axle housing, oil tank, door, etc.
C. Home electric appliance industry: Components of air conditioner, refrigerator, washing machine, microwave oven, electric cooker and so on.
D. Kitchen ware industry: Stainless steel tableware, gas cylinder, stainless steel sink, cooking bench, etc.
Options:
Digital Control, Common Control;
Slow Speed, Medium Speed, Fast Speed;
Water Cooler, Air Cooler, Forced Chiller;
Die Change/Die Clamp Device;
Interval Lubrication, Cycle Lubrication;
Upper Ejector, Bottom Ejector;
Right/Left Mould Opening Cylinders;
Die Change Trolley, Lower Moving Bolster;
With Mould Core-pulling & Ejecting Oil Circuit;
Mould Heating & Cooling System.
Technical specifications:
Technical Specifications
Model
Capacity
(T)

Table Area
(LR× FB)
(mm)
Open Height
(B)
(mm)

Stroke
(C)
(mm)

Descending
Speed
(mm/sec)

Pressing
Speed
(mm/sec)

Ascending
Speed
(mm/sec)

Motor
(HP)
TT-FH100010003000× 2000
3500× 2000
4000× 2500
4500× 2500
1400
1600
1000
1200
30013-11300150
1800
2000
1400
1500
40027-19400250
TT-FH150015003000× 2000
3500× 2000
4000× 2500
4500× 2500
2000150040035-15400300
2500180040053-23400450
TT-FH200020003500× 2000
4000× 2500
4500× 2500
2000
2500
1500
1800
40027-11400300
40040-17400450
TT-FH300030004000× 2500
4500× 2500
2000
2500
1500
1800
40018-8400300
40026-11400450
TT-FH500050004000× 2500
4500× 2500
2000
2500
1500
1800
40018-9400600
40023-11400750
